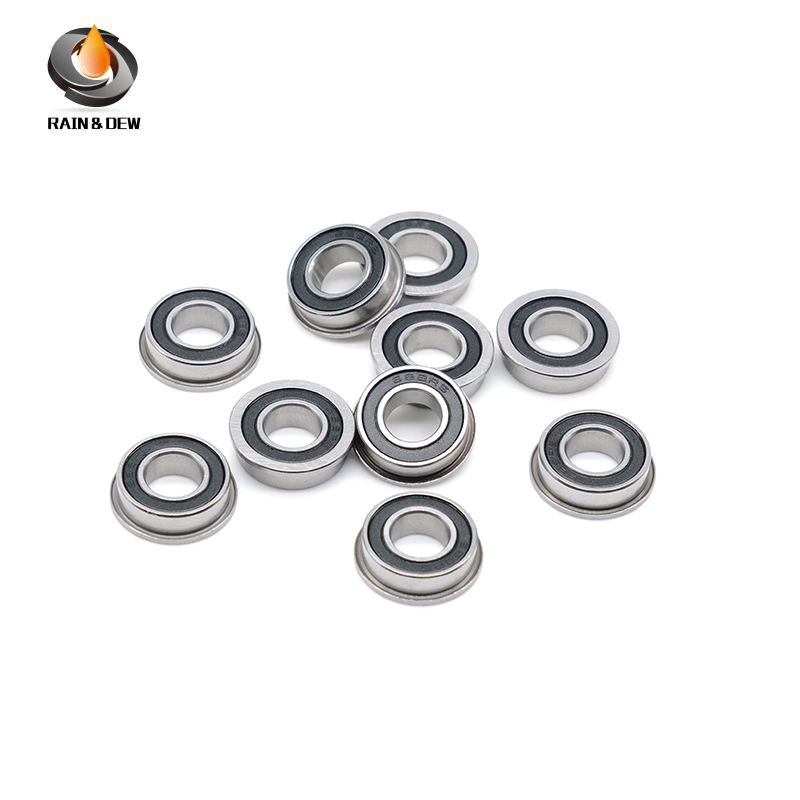

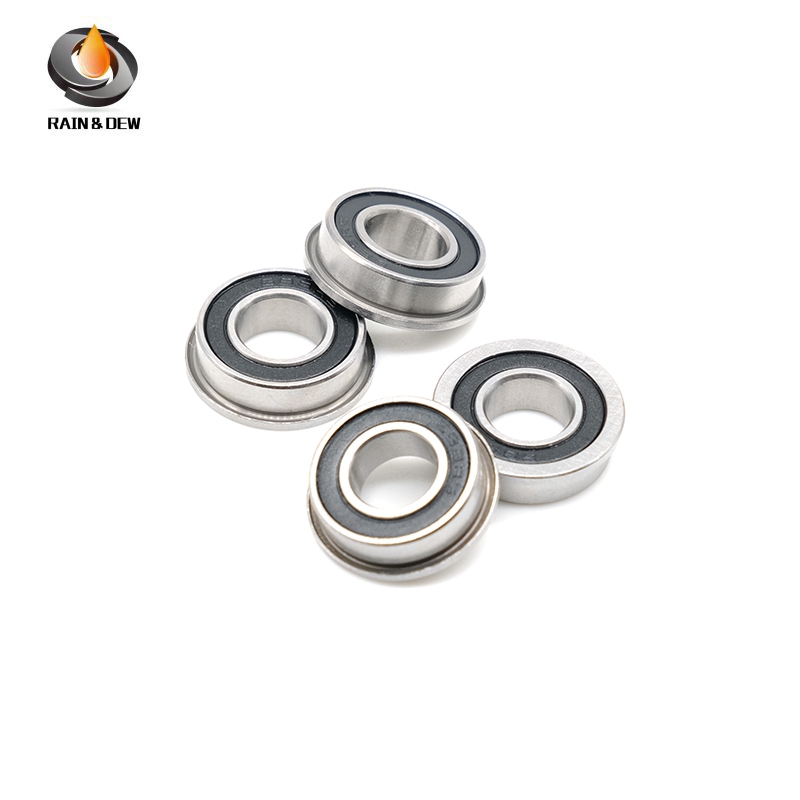

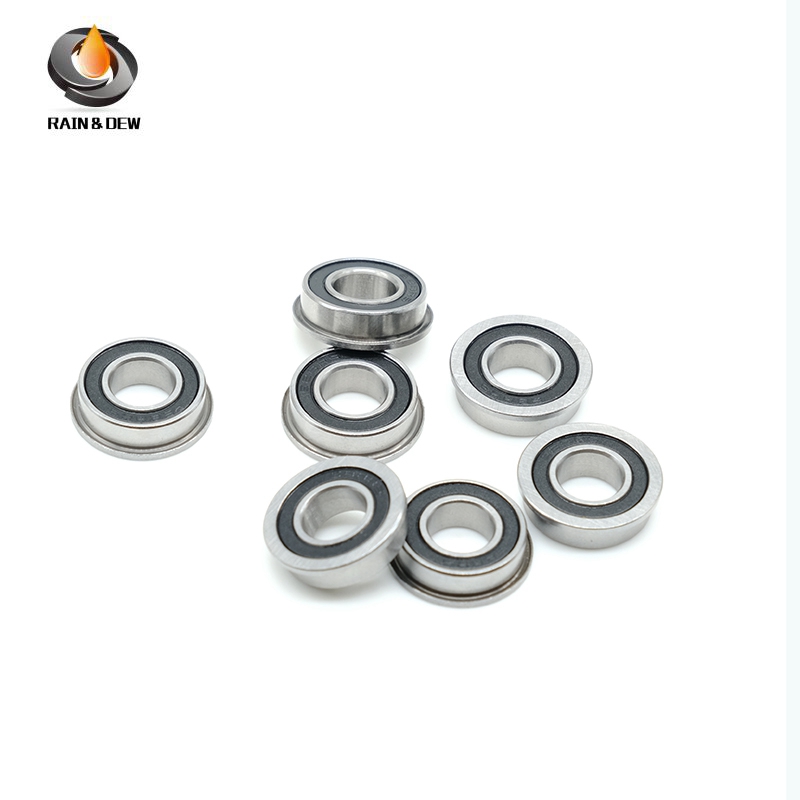

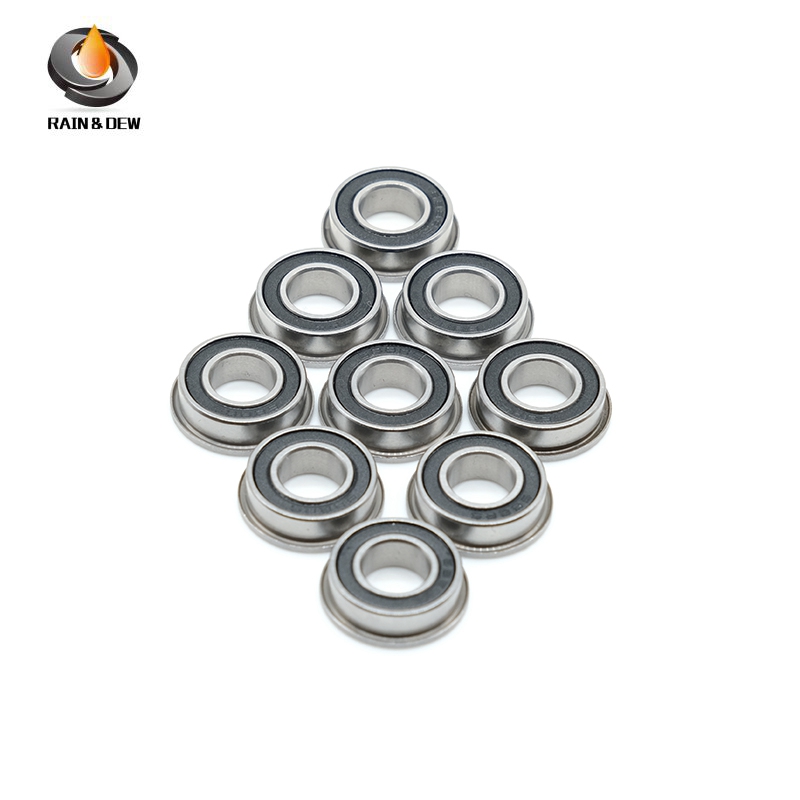

10Pcs F688 2RS Bearing 8x16x5 mm ABEC-7 Flanged Miniature F688 RS Ball Bearings F688RS For 3D Printer

Short Description:

Features:**Reliable Performance and Durability**The Bearing is a high-quality mi


Product Details

Product Tags

Features:

**Reliable Performance and Durability**

The Bearing is a high-quality miniature ball bearing designed for use in 3D printers and other precision applications. With an accuracy class of ABEC-7, these bearings ensure smooth and consistent rotation, making them ideal for tasks that require precision and reliability. The bearings are made from GCr15 bearing steel, which is known for its high hardness and durability, ensuring long-lasting performance in demanding environments.

**Sealed for Protection and Performance**

The bearings come with a rubber seal cover, which not only protects the bearings from contaminants but also maintains the integrity of the lubricant, allowing for higher speeds and improved performance. The seal cover also helps to prevent the ingress of dust and debris, which can lead to premature wear and failure. The sealed design ensures that the bearings are suitable for use in both grease and oil environments, offering flexibility in lubrication choices.

**Versatile and Compact Design**

These bearings are compact and versatile, fitting into a wide range of applications. Their flanged design allows for easy mounting and alignment, making them a practical choice for both professional and DIY projects. The bearings are capable of handling dynamic loads up to 1252 N and static loads up to 592 N, making them suitable for a variety of loads and speeds. Whether you're looking to enhance the performance of your 3D printer or seeking reliable bearings for other precision equipment, this bearings are an excellent choice.


TECHNICAL SPECS
Model: F688-2RS
Accuracy Class: ABEC-7
Bearing Type: Flange Ball Bearing
Bearing Material GCr15 Bearing Steel
Ball Material: GCr15 Bearing Steel
Seal Type: Rubber Seal Cover
Inner diameter (d): 8 mm
Outer diameter (D): 16mm
Width (B):5mm
Clearance level: C0
Bearing Type: RS Rubber Seal
Dynamic Load Rating (Cr): 1252 N
Static Load Rating (Cor): 592 N
Grease Speed: 36 000 rpm
Oil Speed: 43 000 rpm
