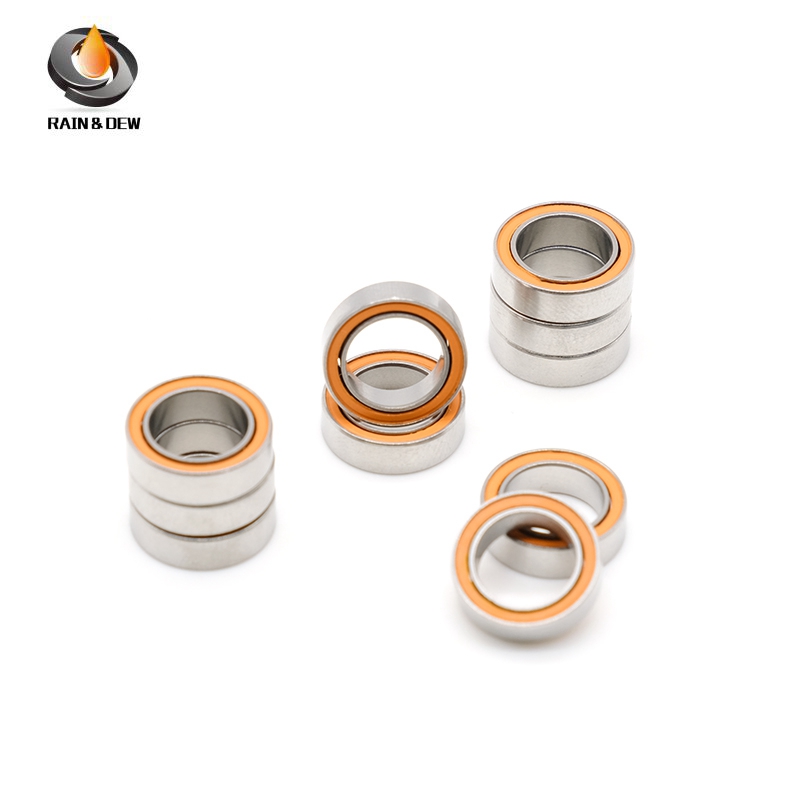

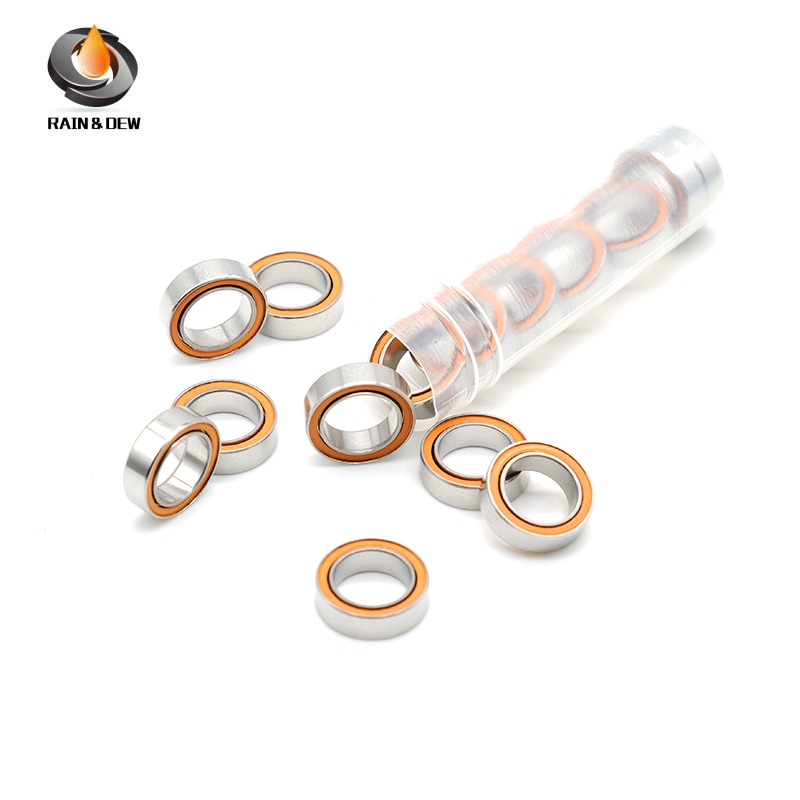

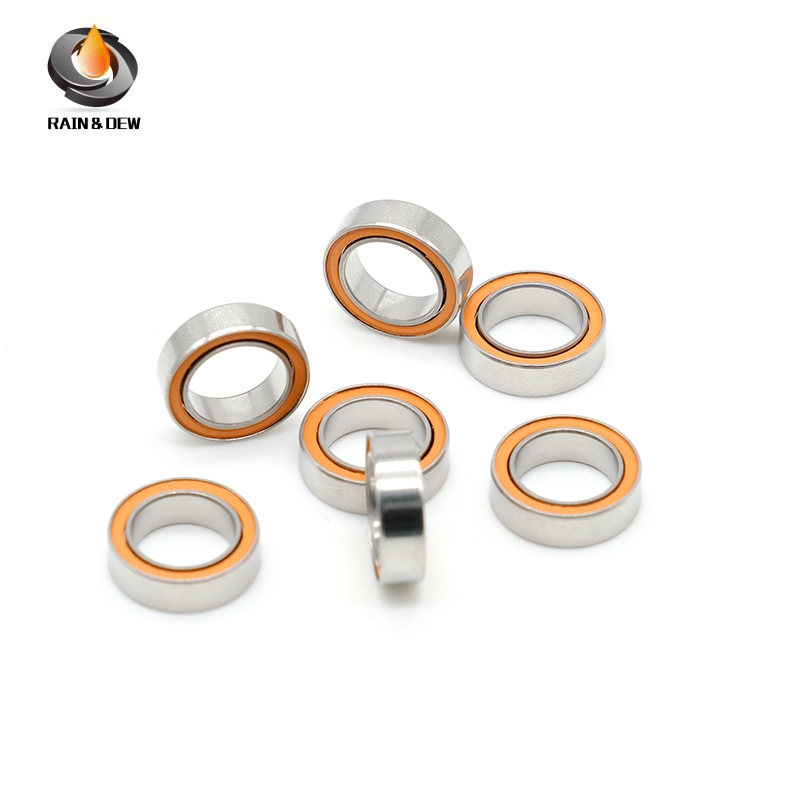

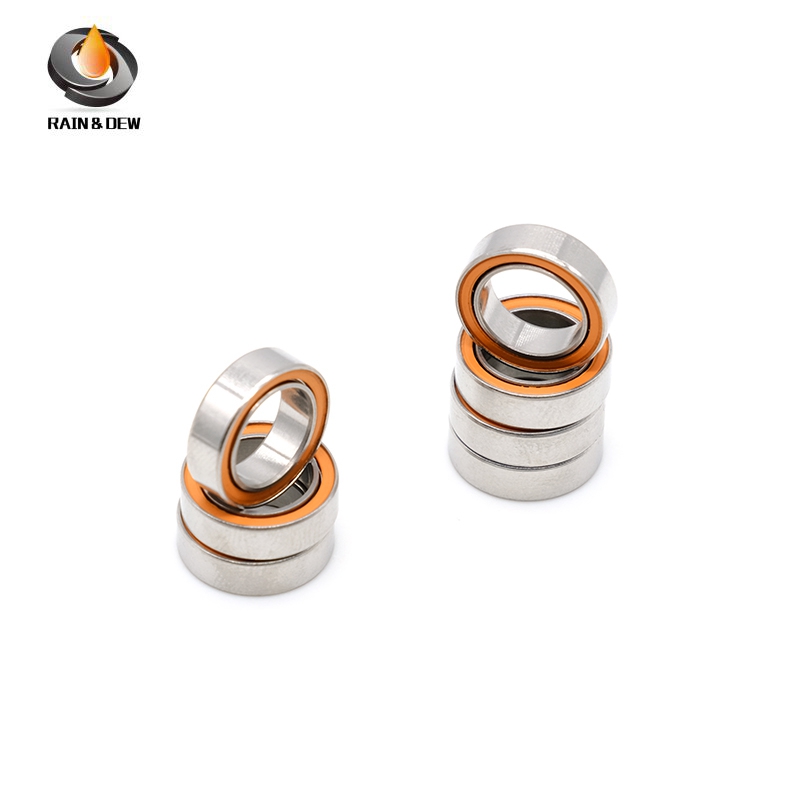

1PCS Hybrid Ceramic Stainless Steel SMR128RS CB 8X12X3.5 mm ABEC-7 Contains SMR63~S694RS CB SR188~SR156RS CB Multiple Models

Short Description:

Features:**Premium Construction for Enhanced Longevity**This hybrid ceramic bear


Product Details

Product Tags

Features:

**Premium Construction for Enhanced Longevity**

This hybrid ceramic bearing represents the pinnacle of precision engineering, combining 440C stainless steel races with silicon nitride (Si3N4) ceramic balls. This sophisticated material synergy delivers exceptional corrosion resistance and superior performance under high-temperature conditions. Designed for applications requiring both rapid rotation and extended service life, this bearing significantly outperforms conventional options, ensuring your equipment operates at its peak potential.

**Revolutionary Low-Friction Performance**

The integration of advanced ceramic balls transforms the bearing's operational characteristics. These components feature self-lubricating properties that eliminate the need for grease, thereby preventing the common issue of lubricant failure and extending the unit's lifespan. With an exceptionally low coefficient of friction, the bearing achieves rotational speeds up to 50% higher than standard bearings, making it the ultimate solution for high-velocity mechanisms.

**Broad Compatibility and Trusted Operation**

Engineered for versatility, this bearing is an excellent upgrade for skateboards, inline skates, and various precision instruments. Its standardized dimensions ensure wide applicability, while the C0 clearance and ABEC-7 rating guarantee consistently smooth performance. Capable of withstanding temperatures up to 220°C, it offers reliable operation in demanding environments, serving as a definitive mark of quality and dependable performance.


TECHNICAL SPECS
Item: SMR128RS CB
Structure: Deep Groove
Bearing Material: 440C Stainless Steel
Ball Material:Ceramic Si3N4
Bearing Type : Hybrid ceramic ball bearing
Bore Dia (d): 8mm
Outer Dia (D): 12mm
Width (B): 3.5mm
Lubrication: Free of Grease Free of Runing
Magnetic: little
Hardness: 58HRC
Corrosion Resistance: General
Clearance: C0
Bearing Grades: ABEC-7
