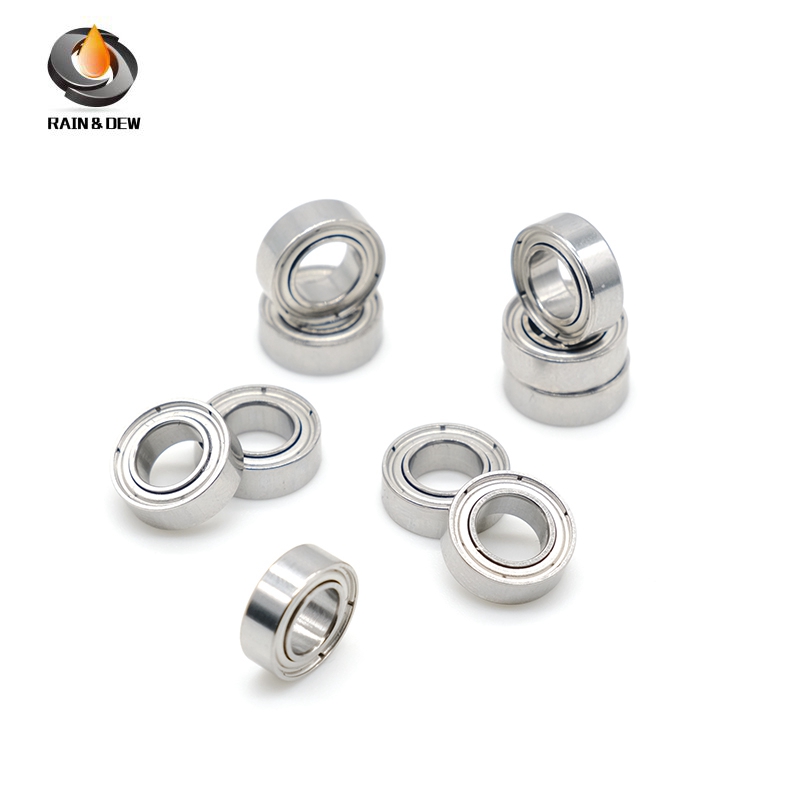

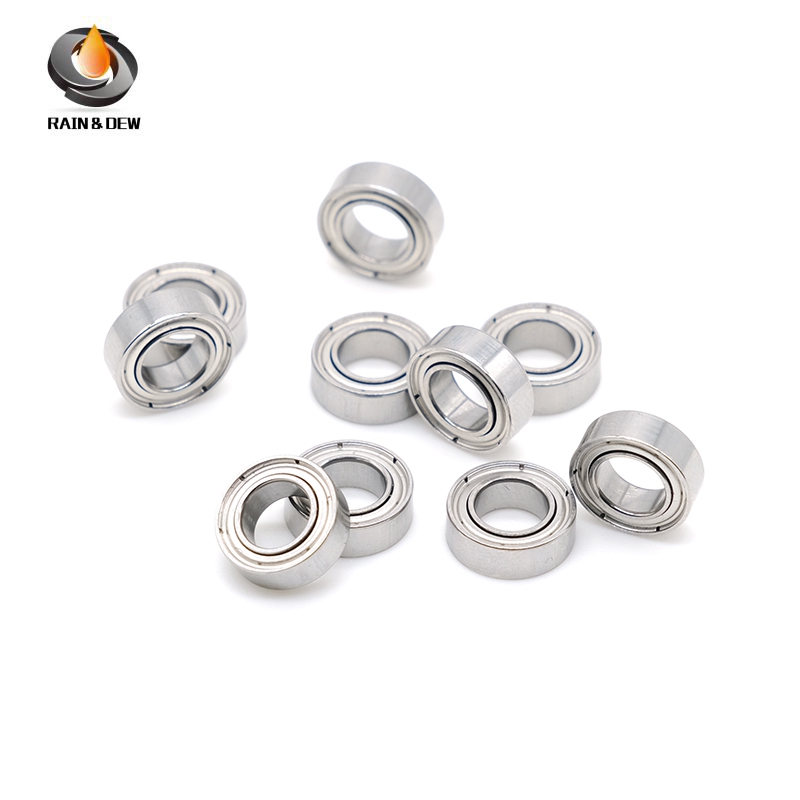

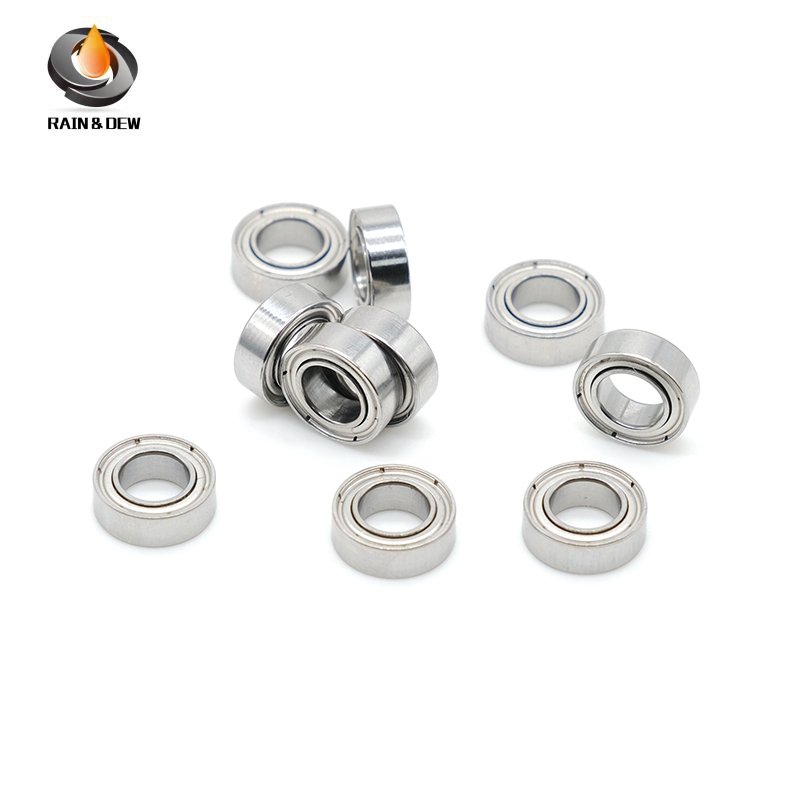

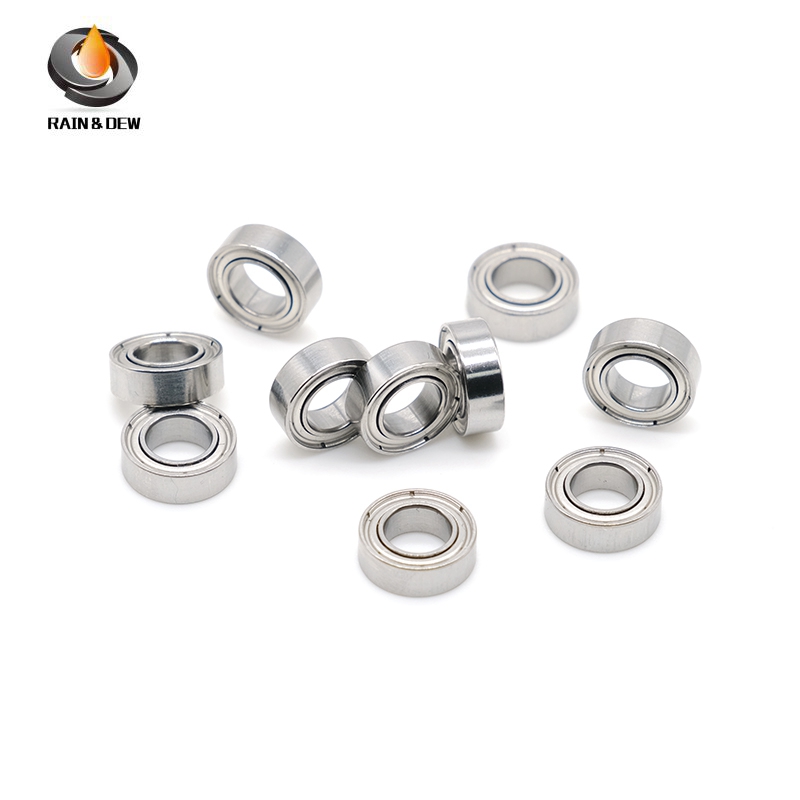

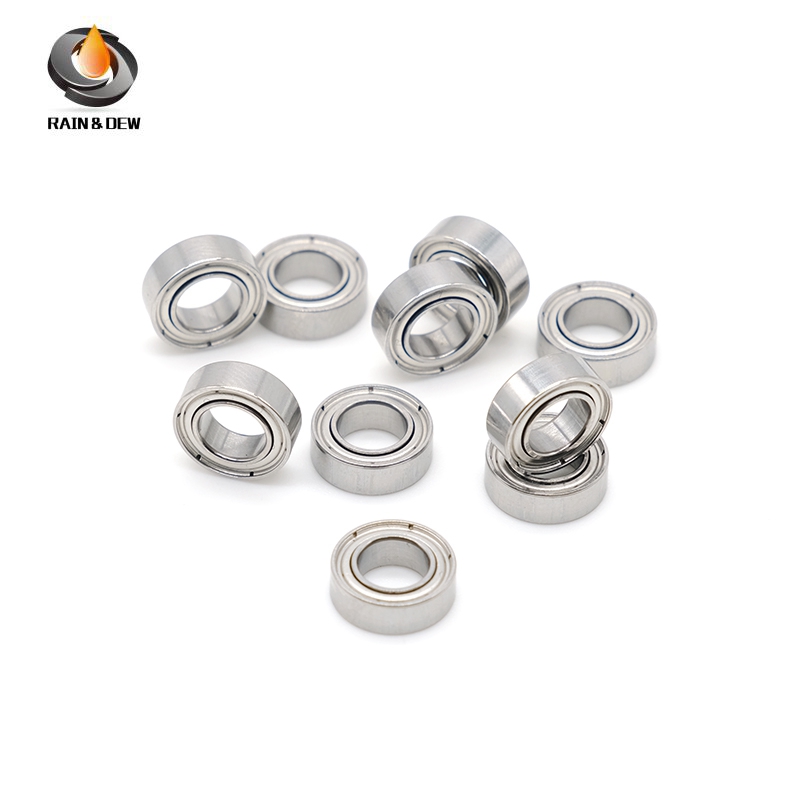

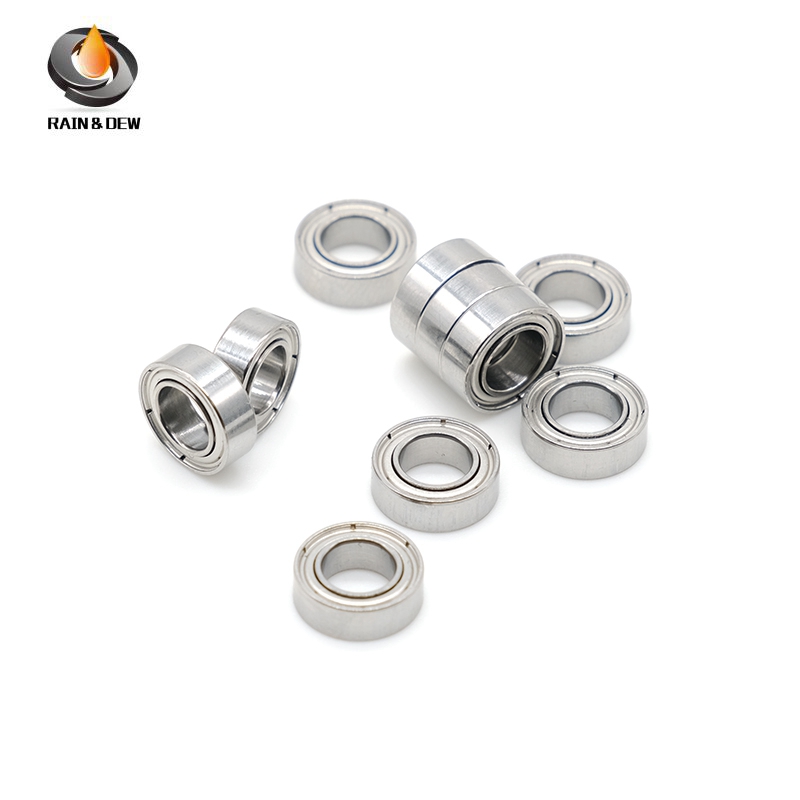

1Pcs SMR95ZZ CB ABEC-7 5x9x3mm Stainless steel hybrid ceramic Fishing Reel Bearings Without Grease Fast Turning

Short Description:

Features:**Advanced Material Composition**The hybrid ceramic bearing is crafted


Product Details

Product Tags

Features:

**Advanced Material Composition**

The hybrid ceramic bearing is crafted with a combination of 440C stainless steel for the outer and inner rings and Si3N4 ceramic balls. This unique design offers a blend of durability and performance, ensuring longevity and reliability in various applications. The ceramic balls, with their low thermal expansion coefficient, are highly resistant to high temperatures, making them ideal for use in environments where heat is a concern. The stainless steel cage and metal shielded closures (ZZ) provide additional protection against contaminants, enhancing the bearing's performance and life.

**Superior Performance and Versatility**

The hybrid ceramic bearing is designed to excel in both static and dynamic load scenarios.  Its high rotation speed is made possible by the ceramic ball's oil-free self-lubricating property, which reduces friction and allows for speeds up to 1.5 times that of standard bearings. The absence of grease ensures that the bearing can function effectively even in dry conditions, making it a reliable choice for various fishing reel applications.

**Long-Lasting Durability**

RainDew's  hybrid ceramic bearing is engineered to outlast conventional bearings. Its ceramic ball construction offers a longer lifespan, with some customers reporting a service life that is 2-3 times greater than ordinary bearings. This longevity is due to the ceramic ball's ability to maintain its performance without the need for additional lubrication, ensuring that the bearing remains operational even in challenging environments. The bearing's design and construction make it an excellent choice for those seeking a reliable and high-performance solution for their fishing reel needs.


TECHNICAL SPECS
Item: SMR95ZZ CB
Structure: Deep Groove
Bearing Material: 440C Stainless Steel
Ball Material:Ceramic Si3N4
Bearing Type : Hybrid ceramic ball bearing
Bore Dia (d): 5mm
Outer Dia (D): 9mm
Width (B): 3mm
Closures: Metal Shielded(ZZ)
Lubrication: Free of Grease Free of Runing
Magnetic: little
Hardness: 58HRC
Corrosion Resistance: General
Clearance: C0
Bearing Grades: ABEC-7
